ICOA 12 ACTIVE PA SPEAKER WITH BLUETOOTH
ICOA 12 ACTIVE PA SPEAKER WITH BLUETOOTH
SKU: SU2410
Hurry Up! only 12 left in stock!
Couldn't load pickup availability
🚚 Free delivery in 2–5 days
↩️ 15 days return
Details

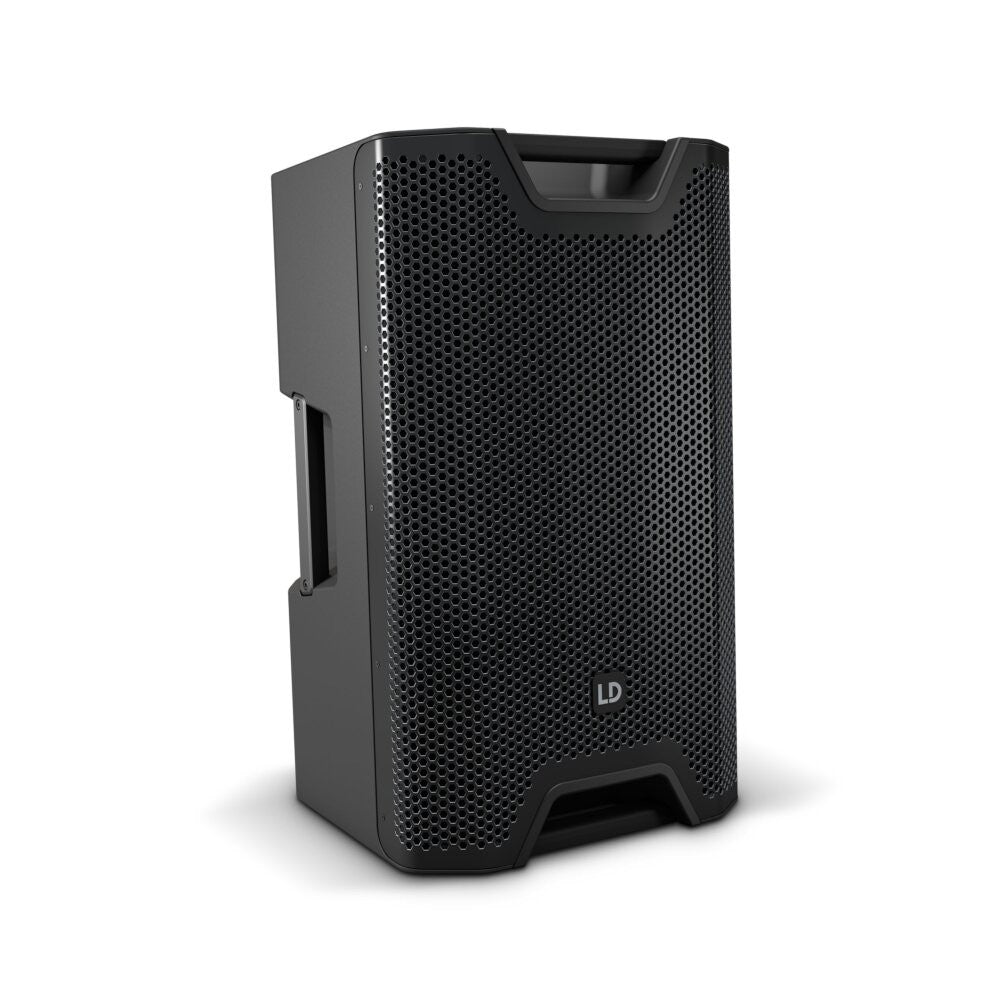

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 12 A BT by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 12" loudspeaker exceptionally flexible.
The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12 A BT the ideal choice for musicians, bands, entertainers and dance schools without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 126 dB max. SPL and 1200 W peak performance.
Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected. A built-in Bluetooth® connection makes this speaker ideal for wireless playback of content from a phone or tablet.
Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12 A BT is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.
Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.
Notes:
- For microphone options view full sound range for add-on microphone systems
- See "Additional Information" tab for connections overview. Additional connection types may be possible with 3rd-party adapters
- Refer to the manual for correct operation
VIDEOS
| Specification | |
|---|---|
| Type | Powered |
| Bluetooth Version | 4.0 |
| Woofer Size | 304.8 mm |
| Woofer Magnet | Ferrite |
| Woofer Brand | Custom-made |
| Horn | BEM optimised CD Horn |
| HF Driver Size | 24.4 mm |
| HF Driver Magnet | Ferrite |
| HF Driver Brand | Custom-made |
| HF Driver Voice Coil | 35 mm |
| Amplifier | Class D |
| Dispersion (H x V) | 90° x 50° |
| RMS | 300 W |
| Peak Power | 1200 W |
| Frequency Response | 50 - 20000 Hz |
| Crossover Frequency | 2 kHz |
| Max. SPL (peak) | 126 dB |
| Protection Circuits | Multiband limiter, over voltage, thermal overload |
| Controls | 2x gain, On / Off switch, Rotary / push encoder |
| Indicators | LC Display |
| Mic / Line Inputs | 2 |
| Mic / Line Connectors | 6.3 mm jack combination sockets (symmetrical), XLR |
| Line inputs | 1 |
| Line Input Connectors | 3.5 mm TRS |
| Line Outputs | 1 |
| Line Output Connectors | XLR |
| Operating Voltage | SMPS |
| Power Consumption | 150 W |
| Ambient Temperature (in operation) | 0 - 40 °C |
| Operating Voltage | 100 V - 240 V AC / 50 - 60 Hz |
| Relative Humidity | < 80 %, not condensing |
| Fuse | T4AL 250 V |
| Cabinet Material | Polypropylene |
| Cabinet Construction | Bass Reflex |
| Mounting | 36 mm flange (0 °, 5 °), 6 x M10 flying points |
| Monitor Angle | 55 ° |
| Dimensions (W x H x D) | 375 mm x 635 mm x 396 mm |
| Weight | 19.95 kg |
| Accessories | None included |
